WATER WELL CASING PIPE

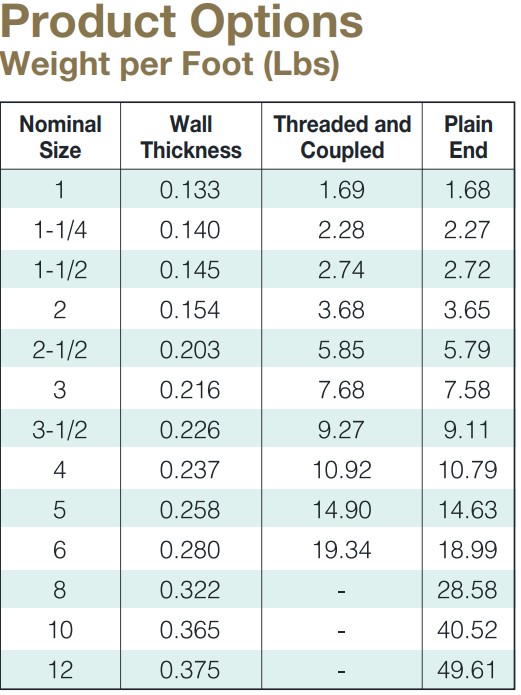

Sizes

  • Outside Diameter

    33,4 mm - 323,9 mm

  • Wall Thickness

    3,2 mm - 9,5 mm

  • Length

    6,00 m - 18,30 m

Production Standards & Material Qualities

• ASTM A 589 Type I, II, III, IV
• Production Standard
• Reliable High Steel Quality
• From Grade A or Grade B Material
• Quality
• Weldable
• Threadable

Tests & Certificates

​• Visual and Dimensional Inspection
• Leak tightness testing: Hydrostatic Test, Eddy Current Test
• Destructive Tests: Flattening, Bending
• Mechanical Tests
• Chemical Analysis
• Metallographic Examination
• Others as required by the standards
• Mill Test Certificates
Issued upon request according to
EN 10204 2.1; 2.2; 3.1; 3.2
• NDT Standards:
ET (EN ISO 10893-2), ET (ASTM E309)

Finishing Operations

• Threaded Option up to 6”
• Hot Dip Galvanised Option up to 6”
